1/4 Inch Shank Tungsten Carbide Double Cut Rotary Burr Set

Name: 14 Inch Shank Tungsten Carbide Double Cut Rotary Burr Set
Brand: KINGTOOLS
Price: 1.99 USD

China 1/4 Inch Shank Tungsten Carbide Double Cut Rotary Burr Set wholesale

Place of Origin : Sichuan, China

Brand Name : KINGTOOLS

Model Number : 13 Type

MOQ : 10

Price : $1.99-3.99

Shank Diameter : 1/4", 1/8", 1/2", 3, 6, 8 mm

Material : Tungsten Carbide

Head Diameter : 3-25 mm

Chipbreaker : Single/Double/Aluma/Diamond Cut

Head Length : 6-36 mm

Overall Length : 38-81mm

Recommended Grade : YG8, YG10X for carbide head, steel for shank diameter

Head Diameter Tolerance : +0.3 to +0.5mm

Head Cutting Tolerance : +0.5 to 1.0mm

Shank Diameter Tolerance : +0 to +0.04mm

Total Length Tolerance : +-0.1mm

Hardness (HRA) : ≥ 85

Suggested RPM : 25000-50000

Max RPM : 70000

Cutting Pattern : Double Cut, Coarse Cut, Standard Single Cut, Aluminum Cut Single Cut, Fine Single Cut, Cast Single Cut, Standard Cross Gear Cut, Casting Cross Cut, Diamond Cut, Steel File Cross Cut, Fine Tooth Cross Cut, Coarse Cross Cut, Aluminum Cut Cross Cut

Contact Now

Products Description

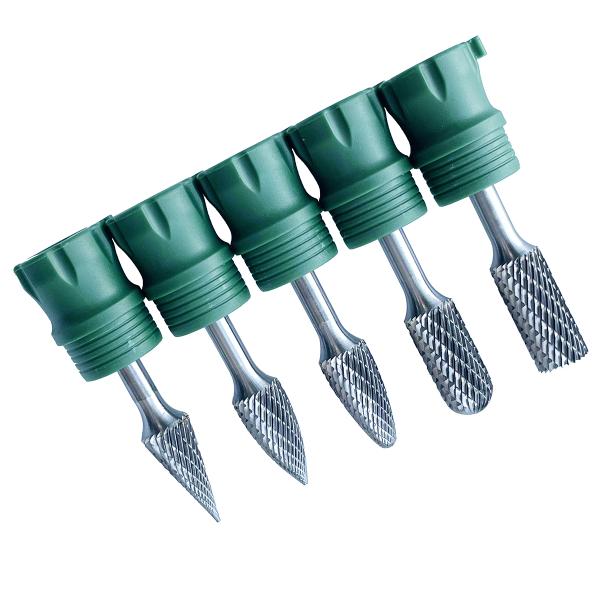

1/4 Inch Shank Tungsten Carbide Double Cut Rotary Burr Set

6mm-25mm Dia Tungsten Carbide Rotary Files Burrs YG6 / YG8 / YG10x
Recommended Grade	YG8, YG10X for carbide head,steel for shank diameter.
Size Rage	Head dia 3-35mm; Shank dia 3,6.8mm Increase length are available.
Tolerence	Head diameter is +0.3 to +0.5mm; Head cutting part is +0.5 to 1.0mm; Shank diameter is +0 to +0.04mm Totel length is +-0.1mm
Sets for carbide cutters.	3pcs/5pcs/6pcs/8pcs/10pcs/12pcs/14pcs in aluminum sets 3pcs/5pcs/6pcs/8pcs/10pcs/12pcs/14pcs in plastic sets The items can be selectable according to client demand.
Applications:	Milling out Weld dressing Deburring Cutting out holes Surface work Milling Weld dressing

Product Specification

KINGTOOLS produces an extensive range of top quality carbide burs and bi-metal hole saws. KINGTOOLS burs deliver very high stock removal performance over their entire service life, providing outstanding results in minimal time.
Tungsten Carbide Conical Pointed Nose Rotary Burrs Use for Metal Wood Hard aluminium alloys Bronze Other non-ferrous metals Hard non-ferrous metal Stainless steel (INOX) Case-hardened steels Steel, cast steel Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC) Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC) Hardened, heat-treated steels over 700 N/mm² (> 220 HB) Grey/nodular cast iron (GG/GJL, GGG/GJS) Cast iron Copper Soft non-ferrous metal Brass Hard non-ferrous metal Black cast iron (GTS, GJMB) Annealed cast iron Steel Steel, cast steel Steels up to 1,200 N/mm² (< 38 HRC) Steels up to 700 N/mm² (< 220 HB) Cast steel Steel materials with a hardness over 54 HRC Annealed cast iron Titanium Titanium alloys White annealed cast iron (GTW, GJMW) Tool steels Zinc	Cutter Pattern： * DX: Double Cut * C: Coarse Cut * M: Standard Single Cut * W: Aluminum Cut Single Cut * F: Fine Single Cut * Z: Cast Single Cut * MX: Standard Cross Gear Cut * ZX: Casting Cross Cut * L: Diamond Cut * SX: Steel File Cross Cut * FX: Fine Tooth Cross Cut * CX: Coarse Cross Cut * WX: Aluminum Cut Cross Cut
Specification : * HRA: ≥ 85 * Suggested RPM:25000-50000, Max RPM 70000 * Package:Individually packaged and can be customized * Technology:100% Flat bottom silver welding tungsten carbide burrs	Features： * Used to process all kinds of metal (including hardened steel) and nonmetal * High production efficiency, Can reduce labor intensity convenient to use. * Widely used in the pneumatic or electric tools.

Why Choose Us

Hot Sale Product

Company Profile

Chengdu Joint Carbide Co.,Ltd

introduced the most advanced international five-axis five-linkage CNC tool grinder, three-coordinate tool detector and other equipment from Germany. The aim is to produce high-quality, internationally competitive products using internationally advanced equipment. with a mature R&D team and management team in China, and a stable supply chain. Our company has completed the accumulation of various infrastructure and technology research and development. Since 2020, our company has added 100 five-axis five-linkage rotary grinders, and currently 180 units are in use. By 2023, our company will invest a total of 300 five-axis five-link rotary grinders (total value 150 million RMB). By then, our company will become the world's largest supply base for rotary files.We look forward to the joining of people with lofty ideals to complete the company's dream together.

Packaging

Customized Product packaging

Each product has a separate plastic box , according to the different quantity you need, we will provide you with different packaging according to your requirements.

FAQ

1.Could your company send me the catalog with price list? KTS : Yes, catalog is OK, but kindly tell us the item models you want. Then our salesmen will send quotation list as soon as possible.

2.May I order small quantity of carbide products? KTS : Yes, but different models have different MOQ. So you'd better contact us to confirm.

3.Can your company provide samples?

KTS: Yes, please feel free to tell us the item item models you prefer. Your own designs are also welcome to custom sample for you.

4.When can your company delivery me the carbide products after payment?

KTS : Usually around 7-15 days.

5.What is your price term,payment term and delivery terms?

KTS :

Price Terms: By FOB Guangzhou price. Balance paid before shipment.

Payment Terms: T/T in advance.

Delivery Terms: BY express,by air, by shipment or as per requirement.

6.What is your company's guarantee? KTS : The products will pass strict inspection before shipment. If any problems be found, detail photos need to be provided 20 days after receiving the goods. After our confirmation, compensation will be offered accordingly.
